1. Part Number : PM-M23A-0xP-FF-SL7A01-00AH
2. IP Class : IP67
3. Number of Pins : 6Pin, 7Pin, 9in, 12n, 16Pin, 17Pin, 19Pin

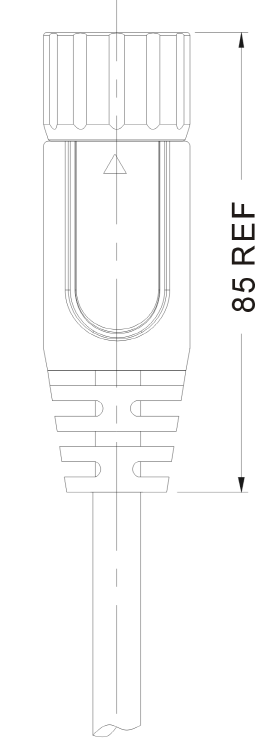

4. Unshield Straight
| Convention | |
|---|---|
| Standard | IEC 61076-2-101 |
| Number of contacts | 3 |
| Coding | A - coded |
| Connector Style | 90°Male |
| Termination | Screw connection |
| Wire gauge | 0.25/0.50 mm2 / (20/24 AWG) |
| Cable OD | 6.0~8.0mm |
| IP Rating | IP67 |
| Mechanical operation | >100 |
| Torque | 0.4 Nm (M12 knurl) |
| 0.8 Nm ... 1 Nm (Pressure screw with sleeve housing) | |
| 0.4 Nm (Screw plug insert with sleeve housing as far it will go) | |
| 0.2 Nm (Screw terminal blocks) | |
| Installation type | Assemble |
| Electrical properties | |
| Rated current (40oC) | 4A |
| Rated voltage | 250V |
| Rated surge voltage | 1.5Kv |
| Contact resistance | <10mΩ |
| Insulation resistance | ≥100MΩ |
| Degree of pollution | 3 |
| Overvoltage category | II |
| Material | |
| Flammability rating according to UL 94 | V0 |
| Contact material CuZn | CuZn |
| Contact surface material | Au |
| Contact material | PA |
| Sealing material | FKM / NBR / Silicon |
| Environmental protection | ROSH |
| Key Commercial Data | 24 AWG |
| MOQ | 10 PCS |
