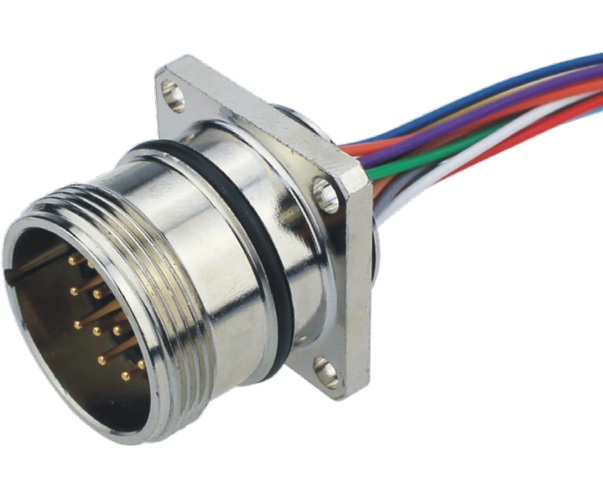

1. Part Number : SS-M23A-0xP-MM-SW7A50-00AH
2. IP Class : IP67
3. Number of Pins : 12n,19Pin
4. Square flange Mount Recpt Front Mounting+wire
Convention | |
---|---|
Standard | |
Number of contacts | 12, 19Pin |
Coding | Non-Coded |
Connector Style | M23, Square flange Mount Recpt, Front Mounting+Wire Solder |
Termination | Screw connection |
Wire gauge | 2.5 mm2 / (14/18 AWG) |
Cable OD | 2.5mm |
IP Rating | IP67 |
Mechanical operation | >100 |
Torque | 0.4 Nm (M12 knurl) |
0.8 Nm ... 1 Nm (Pressure screw with sleeve housing) | |
0.4 Nm (Screw plug insert with sleeve housing as far it will go) | |
0.2 Nm (Screw terminal blocks) | |
Installation type | Assemble |
Electrical properties | |
Rated current (40oC) | 20A |
Rated voltage | 250V, 150V |
Rated surge voltage | 1.5Kv |
Contact resistance | <5mΩ |
Insulation resistance | ≥100MΩ |
Degree of pollution | 3 |
Overvoltage category | II |
Material | |
Flammability rating according to UL 94 | V0 |
Contact material CuZn | CuZn |
Contact surface material | Au |
Contact material | PA |
Sealing material | FKM / NBR / Silicon |
Environmental protection | ROHS |
Key Commercial Data | 14 AWG |
MOQ | 10 PCS |
