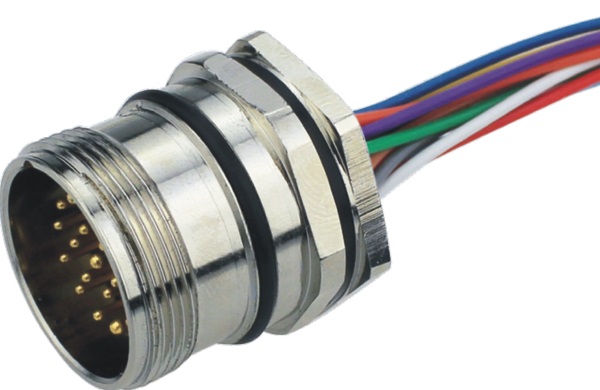

1. Part Number : SS-M23A-0xP-MM-SH7A50-00AH
2. IP Class : IP67
3. Number of Pins : 12n,19Pin
4. Square flange Mount Recpt Front Mounting+wire
| Convention | |
|---|---|
| Standard | |
| Number of contacts | 6, 7, 9, 12, 16, 17, 19Pin |
| Coding | Non-Coded |

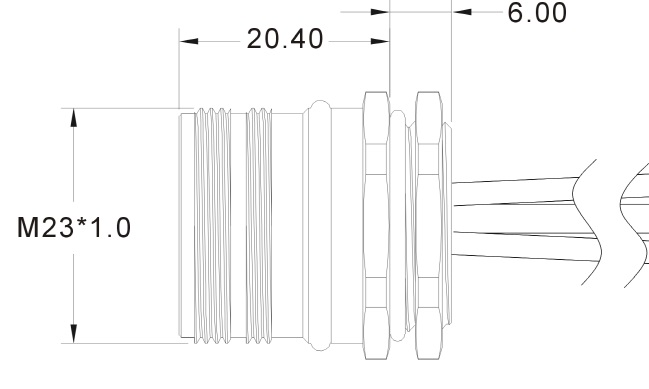

| Connector Style | M23, Aquare flange Mount Recpt, Front Mounting+Wire |
| Termination | Screw connection |
| Wire gauge | 2.5 mm2 / (14/18 AWG) |
| Cable OD | 2.5mm |
| IP Rating | IP67 |
| Mechanical operation | >100 |
| Torque | 0.4 Nm (M12 knurl) |
| 0.8 Nm ... 1 Nm (Pressure screw with sleeve housing) | |
| 0.4 Nm (Screw plug insert with sleeve housing as far it will go) | |
| 0.2 Nm (Screw terminal blocks) | |
| Installation type | Assemble |
| Electrical properties | |
| Rated current (40oC) | 8A~20A |
| Rated voltage | 250V, 150V |
| Rated surge voltage | 1.5Kv |
| Contact resistance | <5mΩ |
| Insulation resistance | ≥100MΩ |
| Degree of pollution | 3 |
| Overvoltage category | II |
| Material | |
| Flammability rating according to UL 94 | V0 |
| Contact material CuZn | CuZn |
| Contact surface material | Au |
| Contact material | PA |
| Sealing material | FKM / NBR / Silicon |
| Environmental protection | ROHS |
| Key Commercial Data | 14 AWG |
| MOQ | 10 PCS |
