Connector

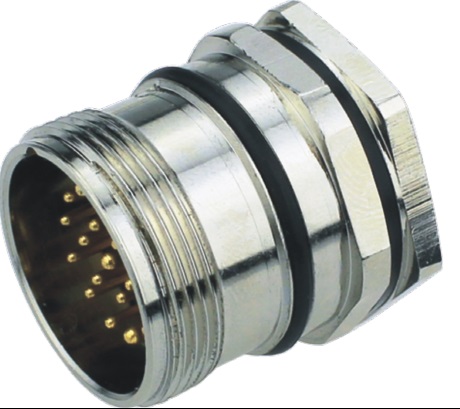

M23 Male Panel Mount Recpt Front Mounting Unshield Solder

제품 정보

1. Part Number : SS-M23A-0xP-MM-SH7001-00AH
2. IP Class : IP67
3. Number of Pins : 6Pin, 7Pin, 9in, 12n, 16Pin, 17Pin, 19Pin

4. Panel Mount Recpt Front Mounting Unshield Solder



제품 상세정보

제품 상세 정보

Convention
Standard
Number of contacts 6, 7, 9, 12, 16, 17, 19Pin
Coding Non-Coded
Connector Style M23, Panel Mount Recpt, Front Mounting, Unshielded
Solder
Termination Screw connection
Wire gauge 2.5 mm2 / (14/18 AWG)
Cable OD 2.5mm
IP Rating IP67
Mechanical operation >100
Torque 0.4 Nm (M12 knurl)
0.8 Nm ... 1 Nm (Pressure screw with sleeve housing)
0.4 Nm (Screw plug insert with sleeve housing as far it will go)
0.2 Nm (Screw terminal blocks)
Installation type Assemble
Electrical properties
Rated current (40oC) 20A
Rated voltage 250V, 150V
Rated surge voltage 1.5Kv
Contact resistance <5mΩ
Insulation resistance ≥100MΩ
Degree of pollution 3
Overvoltage category II
Material
Flammability rating according to UL 94 V0
Contact material CuZn CuZn
Contact surface material Au
Contact material PA
Sealing material FKM / NBR / Silicon
Environmental protection ROHS
Key Commercial Data 14 AWG
MOQ 10 PCS
