Connector

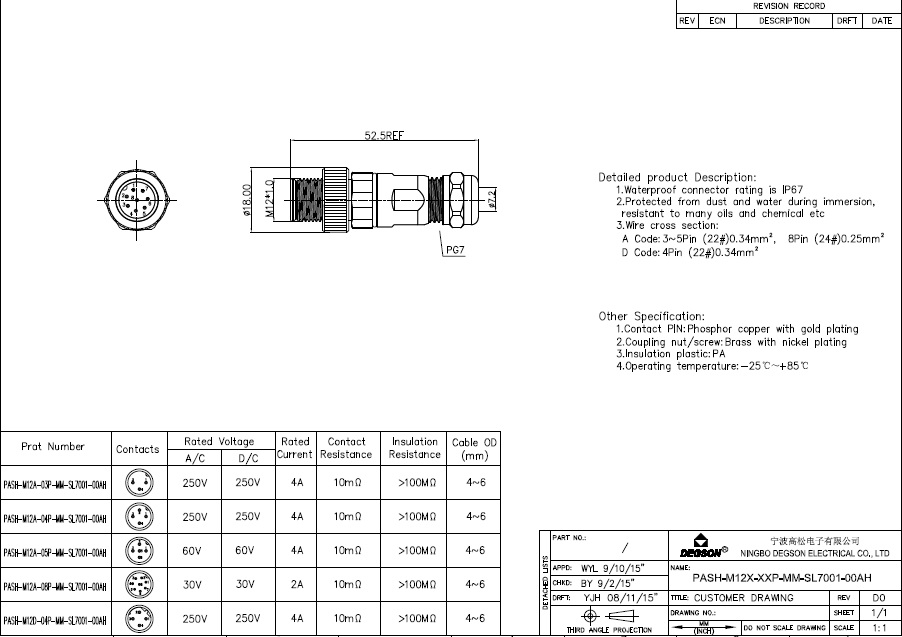

M12 Male Field Assy Shielded Solder Straight

제품 정보

1. Part Number : PASH-M12A-0xP-MM-SL7001-00AH
2. IP Class : IP67
3. Number of Pins : 03 Pin, 04 Pin(A-Coded, D-Coded, S-Coded, T-Coded), 5Pin, 8Pin
4. Shield, Solder Straight


제품 상세정보

제품 상세 정보

Convention
Standard IEC 61076-2-101, IEC 61076-2-111
Number of contacts 3, 4, 5, 8Pin
Coding A, D, S, T - coded
Connector Style M12, Male, Shielded Straight
Termination Screw connection
Wire gauge 0.34 mm2 / (20/24 AWG)
Cable OD 6.0~8.0mm
IP Rating IP67
Mechanical operation >100
Torque 0.4 Nm (M12 knurl)
0.8 Nm ... 1 Nm (Pressure screw with sleeve housing)
0.4 Nm (Screw plug insert with sleeve housing as far it will go)
0.2 Nm (Screw terminal blocks)
Installation type Assemble
Electrical properties
Rated current (40oC) 4A
Rated voltage 250V
Rated surge voltage 1.5Kv
Contact resistance <10mΩ
Insulation resistance ≥100MΩ
Degree of pollution 3
Overvoltage category II
Material
Flammability rating according to UL 94 V0
Contact material CuZn CuZn
Contact surface material Au
Contact material PA
Sealing material FKM / NBR / Silicon
Environmental protection ROHS
Key Commercial Data 24 AWG
MOQ 10 PCS
