Connector

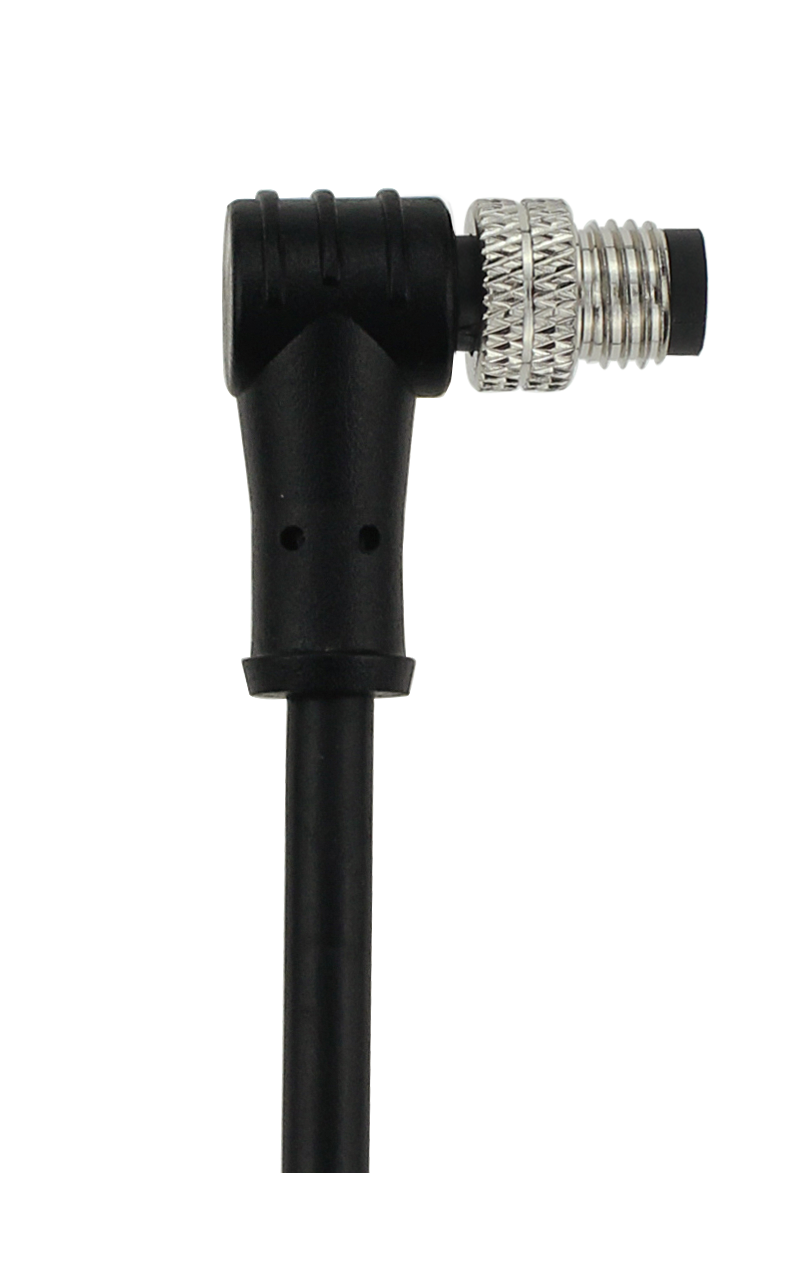

M8 Molded Male/Straight-Female/Angle Unshielded

제품 정보

1. Part Number : PM-M8A-0xP-MM-SR7A0x-00AH
2. IP Class : IP67
3. Number of Pins : 03Pin, 04Pin, 5Pin, 6Pin, 8Pin
4. Unshielded, Male/Straight-Female/Angle



제품 상세정보

Convention
Standard M8 IEC 61076-2-104
Number of contacts 03Pin, 04Pin, 5Pin, 6Pin, 8Pin
Coding A - coded, B-Coded
Connector Style Male/Straight-Female/Angle
Termination Solder
Operating temperature -25 °C ... 85 °C
Shielding Unshielded
IP Rating IP67
Mechanical operation >100
Torque 0.3 Nm ... 0.4 Nm
Installation type Screwable
Electrical properties
Rated current (40oC) 4A
Rated voltage 60V AC,60V DC
Rated surge voltage 1.5Kv
Contact resistance <10mΩ
Insulation resistance ≥100MΩ
Degree of pollution 3
Overvoltage category II
Material
Flammability rating according to UL 94 V0
Contact material CuZn CuZn
Contact surface material Au
Contact material PA
Sealing material FKM / NBR / Silicon
Cable gauge
Conductor cross section 0.25mm2
AWG signal line 24 AWG
Wire colors Brown, white, blue, black
Material conductor insulation PUR / PVC
Environmental protection ROHS
Key Commercial Data
MOQ 10 PCS
